Vibro Shifter

Vibro Shifter

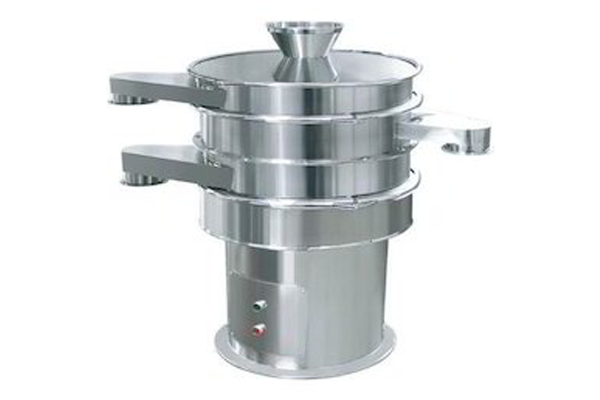

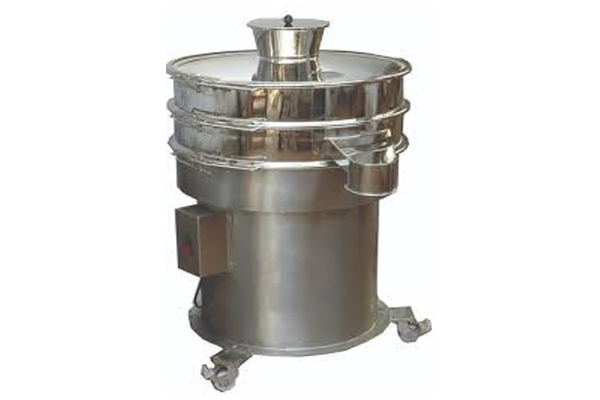

Vibro Sifter works on gyro principle. The required gyratory motion is obtained from specially designed gyro motor, which is fitted underneath the vibrating assembly. The complete vibrating assembly is isolated from the base by means of specially designed rugged springs.

Vibro separators are circular unitary gyratory screens used to separate mass composition of solids from solids, liquid from solid and for gradation of materials as per particle size, having a very wide range applications.

This is accomplished by vibrating the screens in three different planes along the vertical axis by means of a specially designed vibratory motor having off centered weights at the top and bottom end of the motor shaft.

The top weight causes vibration in the horizontal plane which causes the material to move across the screen towards the periphery. The lower weight acts to tilt the machine which causes vibration in the vertical tangential axis

SALIENT FEATURES :

• Noiseless, Maintenance free & high speeds.
• Available in various models providing screening diameter of 12”, 20”, 30” , 36”, 48”, 72” etc
• Portable and compact.
• Electric power requirement less than other machine of the kind in the industries & lower energy.
• Consumption compared to reciprocating vibratory system.
• Standard machine are with TEFC motor explosion proof / flame proof motor material.
• All contact parts and screen of SS 304 AISI stainless steel material.
• SS 316 quality contact parts optional.
• Special requirement like brushing arrangements, SS lid with charging port and spring loaded outlets.
• Easy dismantling and cleaning facility for contact parts.
• Wide range of screen sizes 4-300 Mesh.
• Double & Triple deck screens with outlet and hopper for bottom deck available on request.
