Spiral Filter

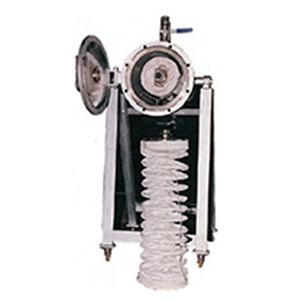

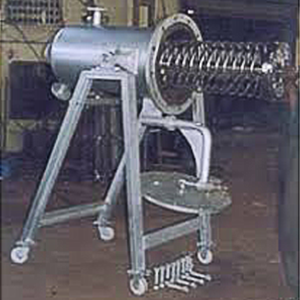

Spiral filters are used for Filteration of liquid with high solid contents in Chemical, Food, Adhesives and other industries. Discharge of the cake in dry or wet form can be done easily by opening and tilting of the filter Container and easily removing the spring catridge.

Model	Filtration Area	Cake Holding Cap
DSP SF 1	1m2	60 kg
DSP SF 1	2m2	100 kg
DSP SF 1	3m2	200 kg
DSP SF 1	4m2	300 kg
DSP SF 1	5m2	400 kg

Filter Operation

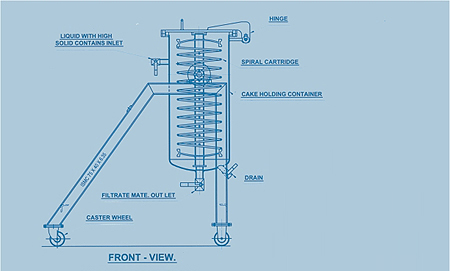

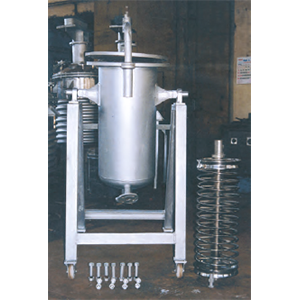

The liquid with high solid contents to be filter is pumped or charged by gravity into the filter container. A spring Catridge consists of spiral spring with a perforated pipe passing through it and supported by studs The spiral spring is covered with filter cloth and tied to the central hollow pipe at every turn of the spring to increase the filteration area. The mixture to be filtered is passed through the filter cloth.The solid remains on the filter cloth and the filterate is discharge through the perforated pipe end. DSP Engineering Spiral Filters are fabricated from Stainless steel, Mild Steel.
