Centrifuges

4 Point Suspension Centrifuges

Heavy Inertia plate and Anti vibration Mounts helps to isolate the vibration in a 4 point centrifuge.

TECHNICAL SPECIFICATION
Model	DSP-24	DSP-36	DSP-48	DSP-60
Basket Diameter mm	600	900	1,200	1,500
Depth mm	300	425	500	500
Max. Basket Revolution RPM	1,000	1,000	900	800
Filteration Area Mtrs sq.Area	0.56	1.2	1.88	2.35
Motors H.P.	3	7.5	15	20
Rated charge in Basket Ltrs	50	140	280	400

The main parts of the Centrifuge are Bearing and Shaft, Basket, Drive and Brake

BEARING AND SHAFT :

The Heavy duty bearing is choosed to withstand vibratory load and centrifugal forces duly fitted in bearing housing . The bearing housing is so designed and filled with grease ensuring long maintenancefree performance. The shaft is made up of suitable material and duly balanced independently without the basket for higher accuracy.

BASKET :

The basket is made up of adequate thickness so as to withstand the loads caused by the centrifugal forces developed by material in the basket. It is perforated and duly balanced. The basket bottom is made up of Mild Steel and lined at the innersurface by Rubber or SS as required.

DRIVE :

The drive consists of Motor mounted at the basket casing driven through V belt with provision of the tensioning the belts. The Centrifuges are fitted with Mechanical Clutch pulley at the motor shaft.

BRAKE :

The Centrifuge are fitted with external shoe brakes with brake liners. The brakes are heavy duty type designed to bring loaded basket to stop quickly.

MATERIAL OF CONSTRUCTION :

The Centrifuge Material of Construction is Carbon Steel, Stainless Steel and Rubber lined.

Note: We reserve the right to change size and design features.

Advantages :

1. Simple operation
2. Level of Vibrations much lower
3. Easily mounted on upper Floors
4. Machine can be easily relocated
5. Firm grouting not required

Drive :

The drive consists of Motor mounted on Inertia plate driven through V Belt totally closed .

Drives & Transmissions :

· Mechanical clutch pulley
· Variable frequency \Drive (Inverter)
· Fluid Coupling

TYPES

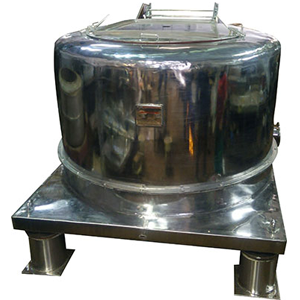

1.Manual Top discharge

In a manual top discharge type centrifuge the solid material is scooped out manually from the top of the centrifuge.

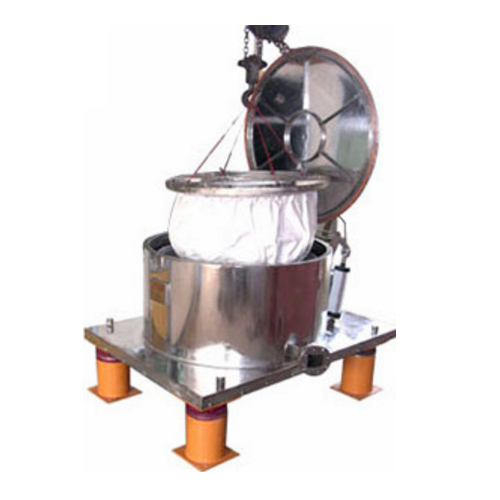

2.Baglifting Top discharge

The Filter bag placed inside the basket retains the solid within the basket. This bag can be lifted using chain pulley manually or motorized mode. Thus the discharge of solid cake is instant and fast facilitating faster batch with less labour involved.

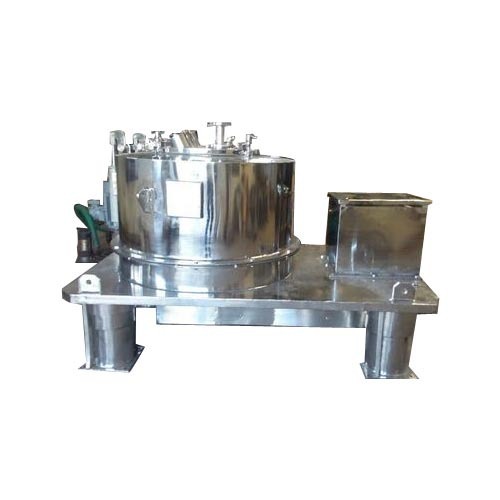

3.Manual Bottom discharge

In a manual bottom discharge type centrifuge the solid material is scooped out by scrapper automatically and discharge the material from bottom.

Technical Specifications

Model	DSP - 24	DSP - 36	DSP - 48	DSP - 60
Inner Basket Thickness	4mm	5mm	6mm	8mm
Top Lid Thickness	4mm	5mm	6mm	8mm
Outer Body Thickness	4mm	5mm	6mm	8mm
Pulley	Mechanical clutch pulley	Mechanical clutch pulley	Fluid Pulley	Fluid Pulley
Total Weight	800 kgs	1,000 kgs	3,800 kgs	4,000 kgs

In Carbon Steel Rubber Lined

Model	MSRL - 24	MSRL - 36	MSRL - 48	MSRL - 60
Inner Basket Thickness	M.S 5 mm	M.S 6 mm	M.S 8 mm	M.S 8 mm
Top Lid Thickness	M.S 5 mm	M.S 6 mm	M.S 8 mm	M.S 8 mm
Outer Body Thickness	M.S 5 mm	M.S 6 mm	M.S 8 mm	M.S 8 mm
Pulley	Mechanical clutch pulley	Mechanical clutch pulley	Fluid Pulley	Fluid Pulley
Total Weight	900 kgs	1,200 kgs	4,000 kgs	4,200 kgs

Centrifuge Bearing Specifications

Single Row Series, Cylindrical Metric, Roller Bearing NF - 300 With Lips On Inner Ring & Single Flane Outer Ring
MODEL	NF - 300	ID	OD	Width	Dynamic-c	Static-cd	Speed Limit RPM grease	Position
DSP - 24	NF - 312 NF - 311	60 55	130 120	31 29	112 101	82.5 72.5	5,500 5900	Top Bottom
DSP - 36	NF - 315 NF - 314	75 70	160 150	37 35	173 144	133 109	4,400 4,700	Top Bottom
Single Row Series, Deep Grove Metric Radial 6300 Ball Bearing
DSP - 48	6320 6319	100 95	215 200	47 45	133 118	132 111	3,200 3,300	Top Bottom
DSP - 60	6321 6320	105 100	225 215	49 47	141 133	144 132	3,000 3,200	Top Bottom
