Reaction Vessel

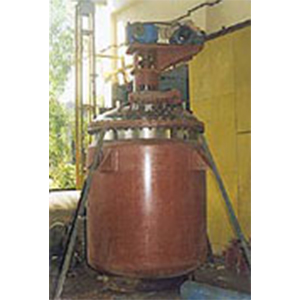

Jacketed Vessel

Reaction Vessel are one of the most important equipments of any chemical, food, drugs, dyes and allied industries.

There are various types of reaction vessel viz jacketed, Limpet coil in Body flange or Welded Types, Top open type, Top dish type etc.

We manufacture Reaction Vessel with capacity ranging from 100 liters to 20,000 liters in Material of Construction Stainless Steel & Mild Steel depending on the requirement of the Material to be processed.

Lenton Assembly

Lenton Assembly contains Bearing Housing with TOP Tapered Roller Bearing for High Accuracy and resistance to impact load & vibratory load and Ball Bearing at the bottom for smooth rotation. Stuffing Box is provided with Jacket for Cooling arrangement to give long life to Gland rope. Gland pusher is provided with Gunmetal Bush Bearing thus ensuring Minimised Friction giving longer life to the Gunmetal Bearing. Bearing Housing and Lenton Assembly are steel Fabricated made from M.S. Plates of suitable strength.

Finish

All weld joints will be finished from inside and outside, S S. Parts is cleaned from inside and outside. Two coates of primer/ redoxide will be given on M.S. parts from outside.

Testing

Equipments are tested Hydraulically as per design Pressure.

Service

After sales servicing is provide by our fully trained and competant engineers.

Jacket Welding

Jacket Closure Ring welding work is performed by using high grade filler rods to withstand closure ring tension. Welding work is performed by Argon Arc process using Good Characteristic Filler rods on all S. S. Parts. M.S. Parts welding is performed by D. C Arc / Argan welding process using suitable electrodes.

Stifner Ring

Stifner Ring is provided on Inner Shell of Jacket inbetween Inner Shell and Outer Jacket to intensify main Vessel and to provide uniform circulation and minimise stagnation of heating or cooling medium.

Mixing With Blade

Types of Blade and Agitator can be used in Reaction Vessels

Drive System is specially Designed for Maintenance & Trouble Free Performance.
