3 Point Suspension Centrifuges

TECHNICAL SPECIFICATION
Model DSP-24 DSP-36 DSP-48 DSP-60
Basket Diameter mm 600 900 1,200 1,500
Depth mm 300 425 500 500
Max. Basket Revolution RPM 1,000 1,000 900 800
Filteration Area Mtrs sq.Area 0.56 1.2 1.88 2.35
Motors H.P. 3 7.5 15 20
Rated charge in Basket Ltrs 50 140 280 400

The main parts of the Centrifuge are Bearing and Shaft, Basket, Drive and Brake

BEARING AND SHAFT :

The Heavy duty bearing is choosed to withstand vibratory load and centrifugal forces duly fitted in bearing housing . The bearing housing is so designed and filled with grease ensuring long maintenancefree performance. The shaft is made up of suitable material and duly balanced independently without the basket for higher accuracy.

BASKET :

The basket is made up of adequate thickness so as to withstand the loads caused by the centrifugal forces developed by material in the basket. It is perforated and duly balanced. The basket bottom is made up of Mild Steel and lined at the innersurface by Rubber or SS as required.

DRIVE :

The drive consists of Motor mounted at the basket casing driven through V belt with provision of the tensioning the belts. The Centrifuges are fitted with Mechanical Clutch pulley at the motor shaft.

BRAKE :

The Centrifuge are fitted with external shoe brakes with brake liners. The brakes are heavy duty type designed to bring loaded basket to stop quickly.

MATERIAL OF CONSTRUCTION :

The Centrifuge Material of Construction is Carbon Steel, Stainless Steel and Rubber lined.

Note: We reserve the right to change size and design features.

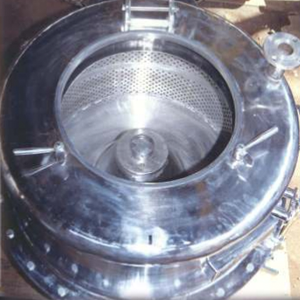

Centrifuge Shell with basket

Fluid Coupling

TYPES

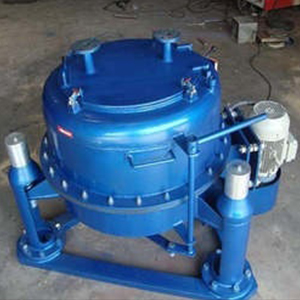

1. Manual Top Discharge Centrifuge

Manual Top Discharge type of Centrifuge is the basic type of Centrifuge for solid liquid separation. It contains Basket which is dynamically balanced in which a filter bag is placed which retains the solid within the Basket. The discharge of the solid cake is from the top which is done manually.It is a three point suspension under driven centrifuge.

2. Manual Bottom Discharge Centrifuge

Bottom Discharge type of Centrifuge is the basic type of Centrifuge almost like Top Discharge centrifuge for solid liquid separation. It contains Basket which is dynamically balanced in which a filter bag is placed which retains the solid within the Basket. The arrangement for the discharge of the solid cake is provided at the bottom which is done manually. It is quick discharge thereby saves on time and labour. It is a three point suspension under driven centrifuge.

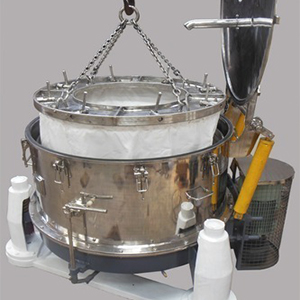

3. Bag Lifting Top Discharge Centrifuge

Bag Lifting Top Discharge type of Centrifuge is the basic type of Centrifuge for solid liquid separation. It contains Basket which is dynamically balanced in which a filter bag is placed which retains the solid within the Basket. This bag can be lifted using chain pulley manually or motorised mode. Thus the discharge of solid cake is instant and fast, facilitating faster and less labour involved.

Technical Specifications

Model DSP - 24 DSP - 36 DSP - 48 DSP - 60
Inner Basket Thickness 4mm 5mm 6mm 8mm
Top Lid Thickness 4mm 5mm 6mm 8mm
Outer Body Thickness 4mm 5mm 6mm 8mm
Pulley Mechanical clutch pulley Mechanical clutch pulley Fluid Pulley Fluid Pulley
Total Weight 800 kgs 1,000 kgs 3,800 kgs 4,000 kgs

In Carbon Steel Rubber Lined

Model MSRL - 24 MSRL - 36 MSRL - 48 MSRL - 60
Inner Basket Thickness M.S 5 mm M.S 6 mm M.S 8 mm M.S 8 mm
Top Lid Thickness M.S 5 mm M.S 6 mm M.S 8 mm M.S 8 mm
Outer Body Thickness M.S 5 mm M.S 6 mm M.S 8 mm M.S 8 mm
Pulley Mechanical clutch pulley Mechanical clutch pulley Fluid Pulley Fluid Pulley
Total Weight 900 kgs 1,200 kgs 4,000 kgs 4,200 kgs

Centrifuge Bearing Specifications

Single Row Series, Cylindrical Metric, Roller Bearing NF - 300 With Lips On Inner Ring & Single Flane Outer Ring
MODEL NF - 300 ID OD Width Dynamic-c Static-cd Speed Limit RPM grease Position
DSP - 24 NF - 312
NF - 311
60
55
130
120
31
29
112
101
82.5
72.5
5,500
5900
Top
Bottom
DSP - 36 NF - 315
NF - 314
75
70
160
150
37
35
173
144
133
109
4,400
4,700
Top
Bottom
Single Row Series, Deep Grove Metric Radial 6300 Ball Bearing
DSP - 48 6320
6319
100
95
215
200
47
45
133
118
132
111
3,200
3,300
Top
Bottom
DSP - 60 6321
6320
105
100
225
215
49
47
141
133
144
132
3,000
3,200
Top
Bottom

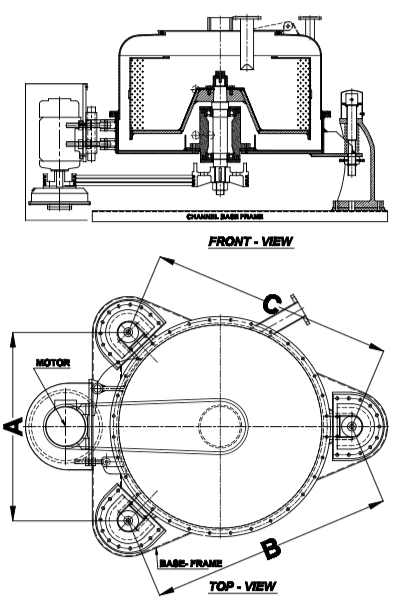

Tri. Angular Base Frame Foundation Hole Size

Sr. No Model A B C
1 DSP 24 740 965 965
2 DSP 36 955 1255 1255
3 DSP 48 1290 1660 1660
4 DSP 60 1460 1915 1915
